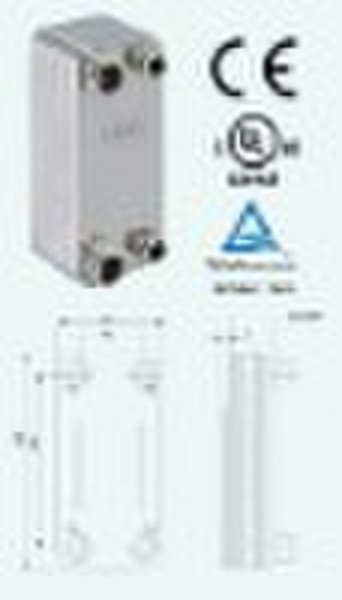

Evaporator

Technical parameterProduct nameCondenser, Evaporator, SubcoolerProduct modelB3-14AUnit heat exchanging area0.014m2Maximum flowrate8m3/hplate material316L or 304 stainless steelWelding material99.9% copperthickness of plate0.3mmVolume per channel0.022LMaximum number of plate 60Design pressure1.0MPa 3.0MPa Test pressure2.0MPa 4.5MPaDesign temperature-195 +220 Connectionsthe biggest screw thread pipefor hot water side: 1", the biggest screw thread pipeforcold water side: 1/2" Capacity1-6KWBasic flow dispositionF1-> F3F4-> F2 Working PrincipleHrale hot water exchanger is composed of two groups of thin rippled metal boards which are 180 degrees rotation punched. The fluids pass the channels between the plates through the connections which are skillfully assembled on the corners of the products. The cold medium and the hot medium always exchange heat when reflowing in the nearby channels, which makes almost 100% materials participate in heat exchanging. Assembleed one side on the heating pipe and the other side on the tap water, Hrale hot water exchanger can heat the tap water into 30 to 50 Celsius degrees. The advantage of Hrale hot water exchanger 1.Hrale hot water exchangers have big power which makes water be heated as soon as it passes through the product. 2.Hrale hot water exchangers are compacted designed, so that it can be easily fixed in any place of the house. 3.Hrale hot water exchangers have very stable quality, never leak or get rusty. How Heat Transfer WorksHeat transfer occurs when there is a difference in temperature between two mediums. Heat will travel from the hot source to the cold source. The rate at which the heat transfer occurs at is determined by many factors such as the heat conductivity of the two materials andthe difference in temperatures of the two mediums. Convectiuve heat transfer occurs when the materials are moving against each other. Plate heat exchangers have significantly good heat transfer rates because they use metal plates which have high heat conductivity rates and the plates are extremely thin. The plate heat exchangers also achieve high amounts of heat transfer through convective forces with both working fluids. With large temperature differentials, great amounts of heat transfer can be achieved using a plate heat exchanger. CorrosionCorrosion is usually how these units will fail. Use fluids with reasonable pH levels to ensure a long lasting life. Hard water will corrode faster than regular water. (Use distilled if possible; Distilled should never corrode it) Salt water will corrode stainless steel very fast. It is recommended to clean the exchanger often if you are using corrosive fluids. Normal usage (non-corrosive fluids) should expect 10-20 years of life. Fluids containing chlorides will corrode the unit quickly. ApplicationsThis is an extremely popular unit for wood burning furnaces, radiant floor systems, refrigerant systems, straight vegetable oil conversions, beer chilling, air conditioning system and solar water heating systems. It will work for any application in which the desired result is for two fluids (liquid or gas) to exchange heat. How it WorksFluid A passes from the port on the left of the heat exchanger through every other channel created by the plates to the opposite end port on the left of the heat exchanger (looking at it the long way). Fluid B passes from the port on the right through the other channels created by the plates and comes out the other port on the right side. The fluids are essentially touching each other through the plates and heat is transferred from the hot fluid to the cold fluid. (but the fluids do not mix)
