| Place of Origin |
Zhejiang China (Mainland) |
| Brand Name |
HRALE |
| Model Number |
B3-60A |

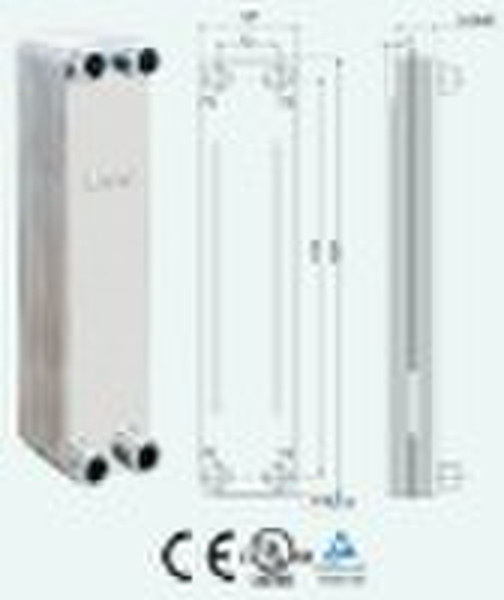

Technical parameterProduct nameBrazed Plate Heat Exchanger,compact brazed heat exchanger,Soldering plate heat exchanger,CE, UL, TUV,ISO9001:2000Product modelB3-60AUnit heatexchanging area0.060m2Maximum Flowrate22m3/hPlate material316L or 304 stainless steelWelding material99.9% copperThickness of plate0.4mmVolume per channel0.111LMaximum number of plate120Design pressure3.0MPa or 4.5MPa Test pressure4.5MPaor 6.0MPaDesign temperature-195 +220 Connectionsthe biggest screw threads pipe for water: 5/4", the biggest welded pipe for other fluid : 15/8" Refrigeration Capacity10-70KWBasic ProceduresF1-> F3F4-> F2 Application scopeHeaing Industry, Heat Pump, Cetral Air-conditioning, Refrigeration Equipment, Industrial water cooler, oil cooler, etc.
