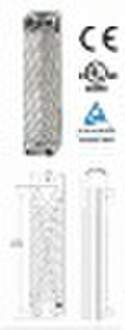

Brazed Plate Heat Exchanger,

Technical parameterProduct nameBrazed Plate Heat Exchanger,Brazed Heat Exchanger,CE, UL, TUV,ISO9001:2000Product modelB3-23BUnit heat exchanging area0.023M2 Maximum flowrate4m3/hPlate material316L or 304 stainless steelWelding material99.9% copperThickness of plate0.3mmVolume per channel0.04LMaximum number of plate 60Design pressure1.0MPa or 3.0MpaTest pressure2.0MPa or 4.5MPaDesign temperature-195 +220ConnectionsThe biggest screw threads pipe for water:3/4" and the biggest welded pipe for the other fluid :7/8" Refrigeration Capacity3-10KWBasic ProceduresF1 -> F4, F3 -> F2 Application scopeWall-mounted Heater, Heating Water Heater, Low Temperature Testing Equipment,Small-sized Refrigeration Equipment, etc. Model B is developed by Hrale for special occasions. The diagonal channels enable a full use of the dead angles of the plate heat exchanger. Even side laid, the exchanger can still work normally.
